Hardware ProductLDRT — next-gen real-time bench controller
Precision control meets intelligent automation. The LDRTDaq-m1 packs deterministic 1 ms control, EtherCAT, CANFD and high-speed data acquisition into a 0.7 kg Linux box.
EtherCAT Fieldbus
High-Speed DAQ
Multi-Axis Control
Compact Design
Modular Architecture
AI-Ready Platform

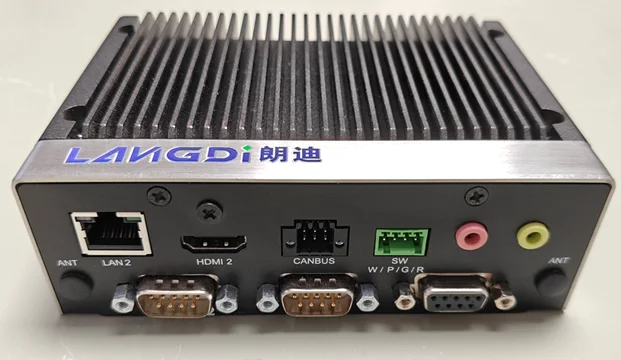

LDRTDaq-m1
Capabilities
- 1 ms real-time control — deterministic loop execution for bench control and HiL.
- Built-in EtherCAT master — native fieldbus support for I/O and drive chains.
- 4× CANFD + 2× CAN — real-time bus channels for automotive and industrial networks.
- OPC UA connectivity — clean integration with LDEV-X, SCADA and factory systems.
- Custom & Simulink models — one-click deployment of control models to the target.
- 500-channel logging @ 1 kHz — high-speed capture without an extra data logger.
- Linux-based, ultra-compact — 133 × 46 × 94 mm and only 0.7 kg — fits any bench.
Technical data
LDRTDaq-m1 specifications
| Processor | Intel N200, 4 cores |
|---|---|
| Memory | DDR5, up to 16 GB |
| Storage | NVMe SSD, up to 1 TB |
| I/O | 1× EtherCAT · 4× CANFD · 2× CAN |
| Real-time performance | 1 ms deterministic control loop · 500-channel logging @ 1 kHz |
| Connectivity | OPC UA · EtherCAT master · CAN/CANFD |
| Dimensions & weight | 133 × 46 × 94 mm · 0.7 kg |
| Power | 12 VDC, typical 10.5 W |
| Operating system | Linux (real-time) |

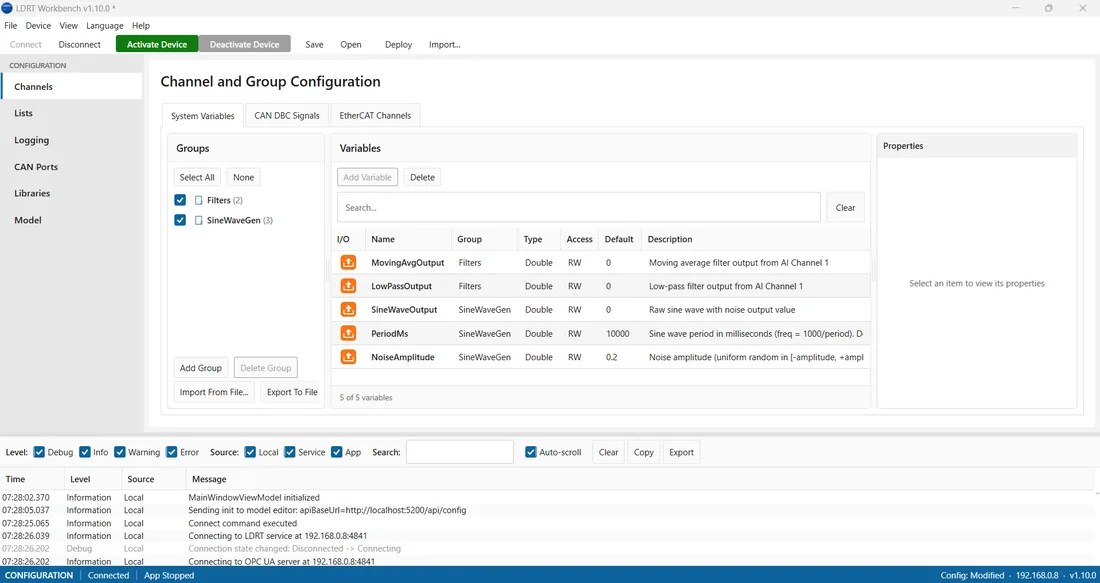

LDRT Workbench
One tool from development to monitoring
The LDRT Workbench desktop suite covers the whole controller workflow:
- Develop — use the built-in AI code agent to develop custom bench control logic.
- Configure — system variables, CAN, EtherCAT, models, logging and test sequences.
- Validate — schema validation before deployment prevents runtime errors.
- Deploy — one-click deployment to LDRTDaq hardware via OPC UA.
- Monitor — real-time variable monitoring with interactive tables and graphs.
AI agent skills
Domain knowledge, built into the agent
Each skill encodes correct schemas, naming conventions and dependency ordering — so the agent produces valid LDRT configurations, not guesses.
System Variables
Define channels, sensors, setpoints and calibration parameters.
Model Config
Wire library modules into signal-processing chains.
Expressions
Create math and logic formulas for computed values.
Logging
Configure data recording with triggers and groups.
List
Build automated step profiles — ramps, sweeps and cycles.
CAN
Set up CAN bus hardware and message definitions.
See it in action
LDRT Workbench live demo
▶
Demo video coming soon
Real-time control and data acquisition, from EtherCAT scan to live monitoring. Request a live demo in the meantime.
